RFID Card Reader 125KHz/13.56Mhz Reader Support ISO14443-A/B Protocol IC ID C...

About this item

• USB Inteface,Card reader only, Plug in and Play,Open the software or document that needs to be read,Read the card number.simulate keyboard input, works in Linux Andriod Windows Mac IOS. Setting Software download link: https://drive.google.com/file/d/1rVRwwbhugu_rhf2BBMGD-EnYba88Sjb2/view?usp=drivesdk

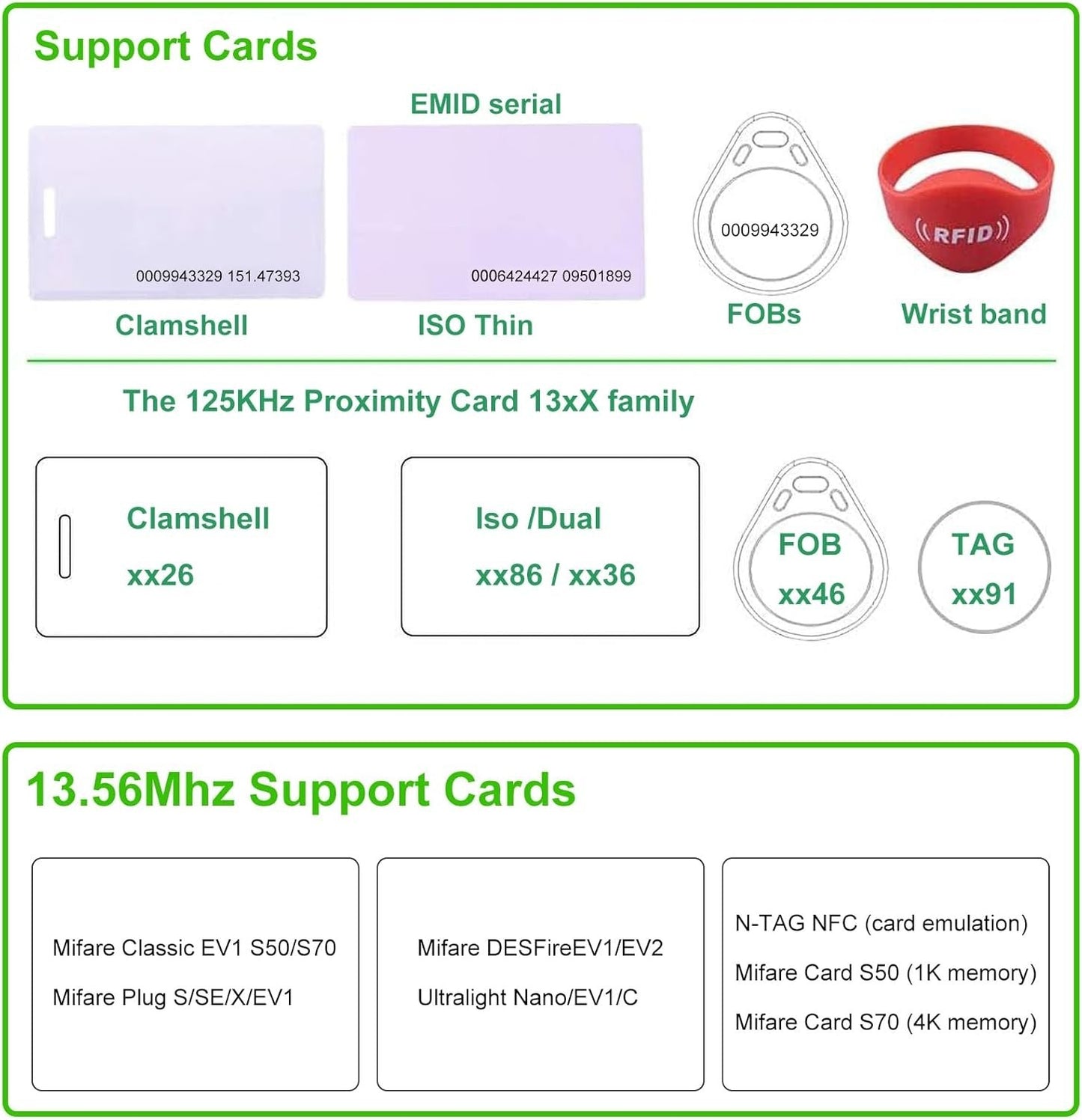

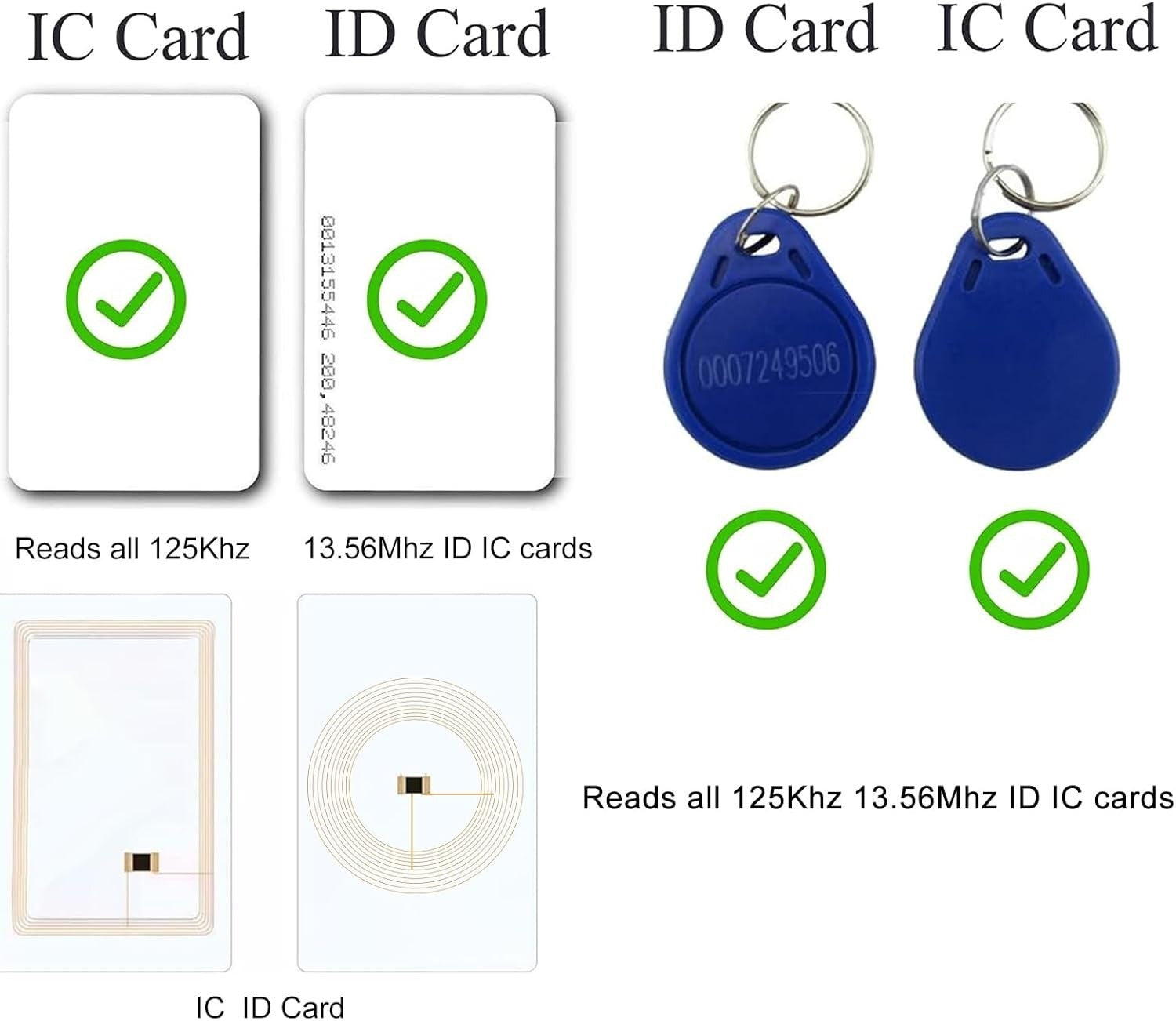

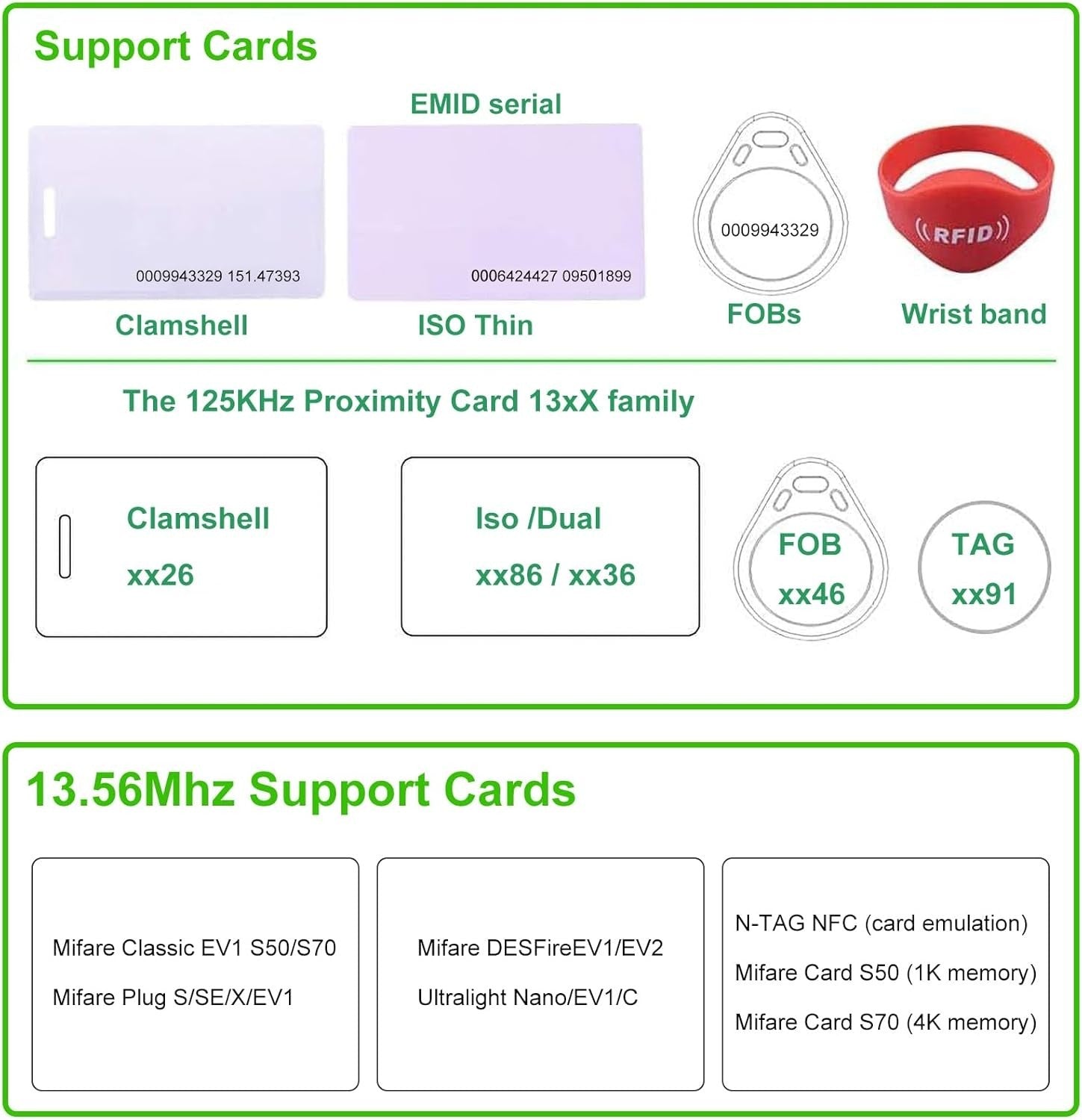

• RFID Reader Scanner read both 125KHz/13.56Mhz 1326 family ISO Prox whole family cards & EM ID EM4100 cards together, MF S50 S70 bank card and other 14443A protocol labels that support ISO14443-A/B protocol, ID IC card and other 14443B protocol labelsHID,Working frequency band 125KHz/13.56Mhz.
• Proximity card reader sends 125KHz/13.56Mhz Dual-frequency proximity card 1326 family card number in 40 type formats or in raw wiegand bit data format, from 24 bit to 80 bits data, easy for understanding 1326 family card type.

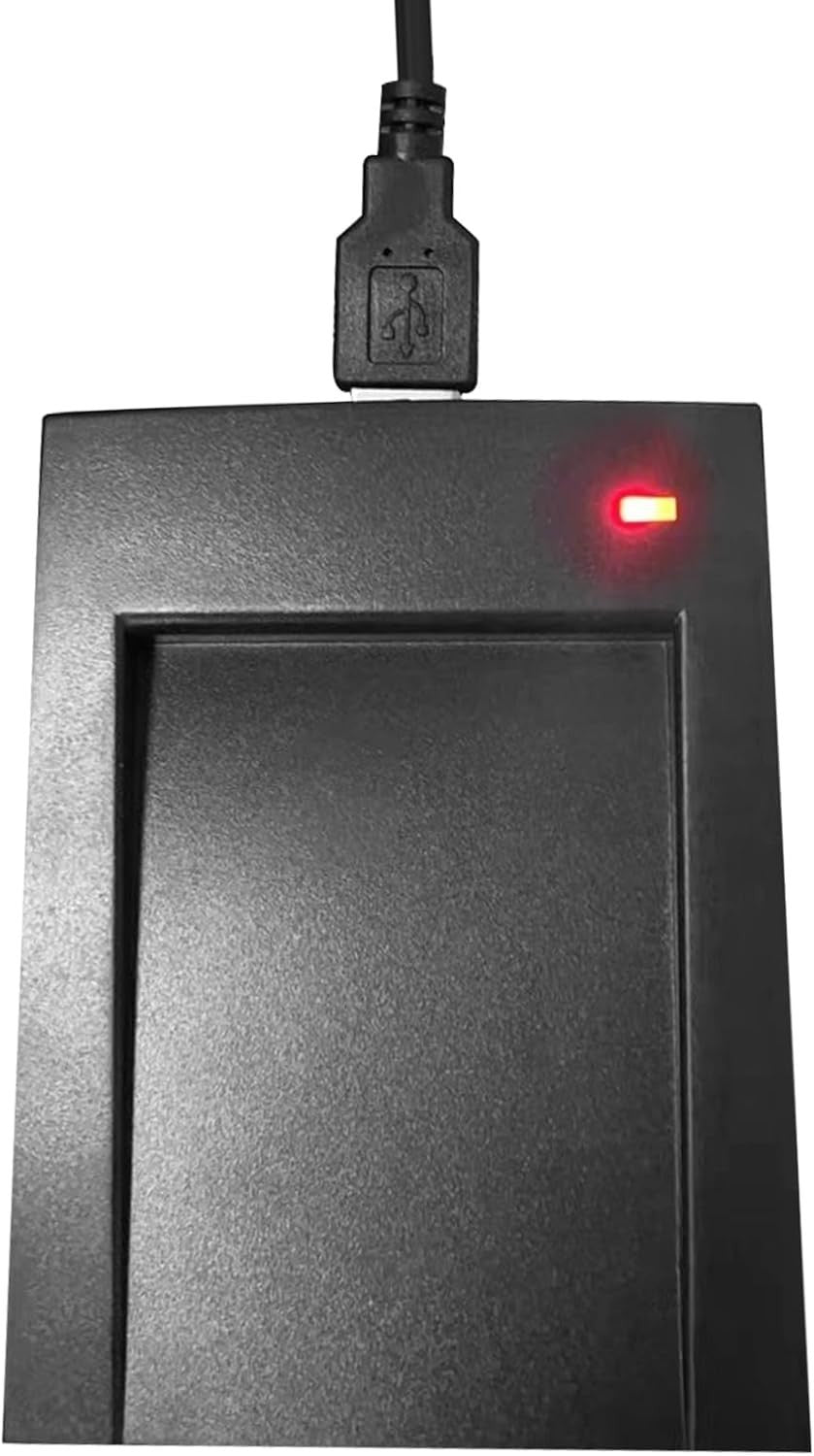

• Working status: Red indicates standby mode, and green indicates successful card swiping,Built in operating buzzer.
• 125KHz/13.56Mhz Dual-frequency RFID reader supports EM4100 ID cards and also 1326 1346 1386 ISO Prox card, H10301 H10304 format etc.

Product Description

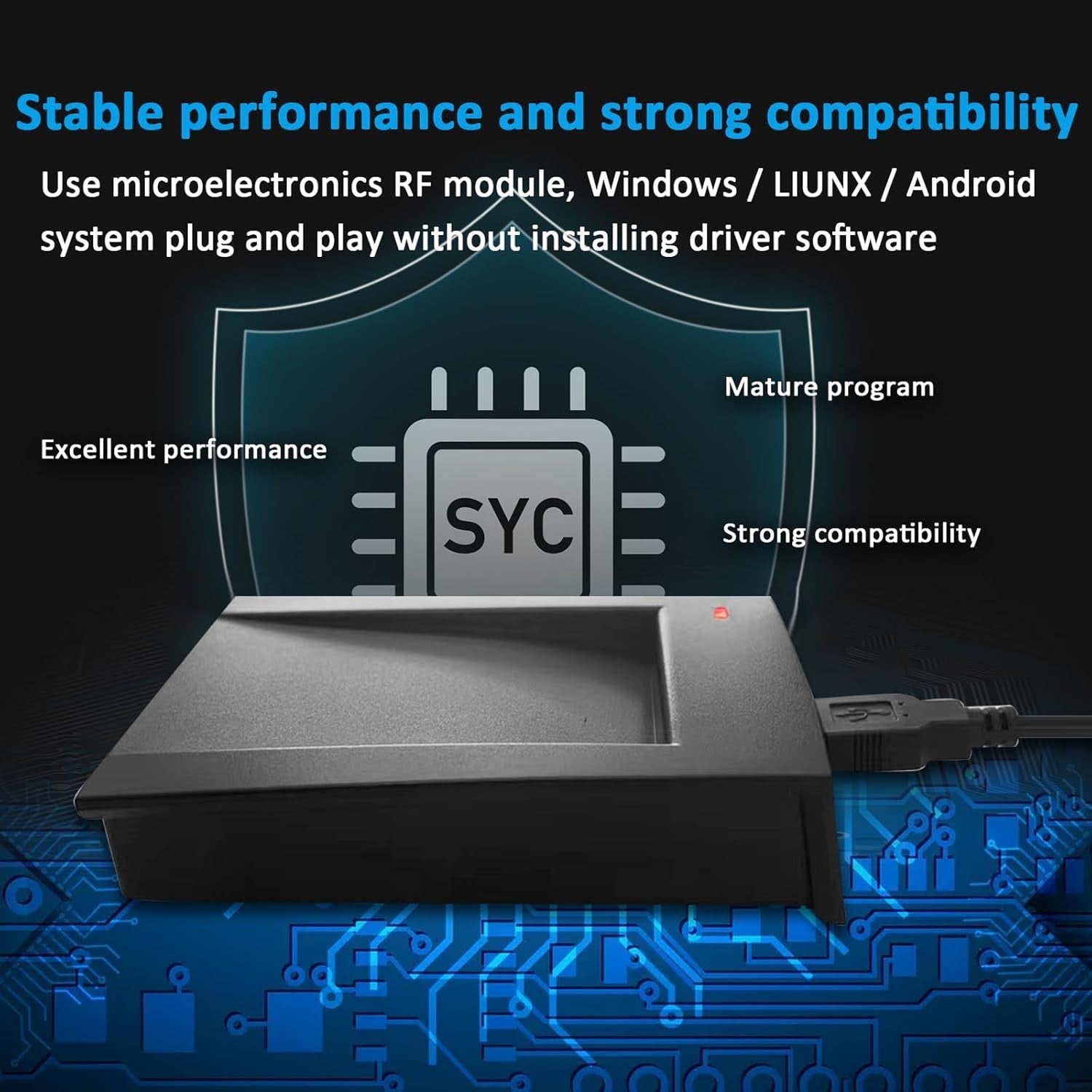

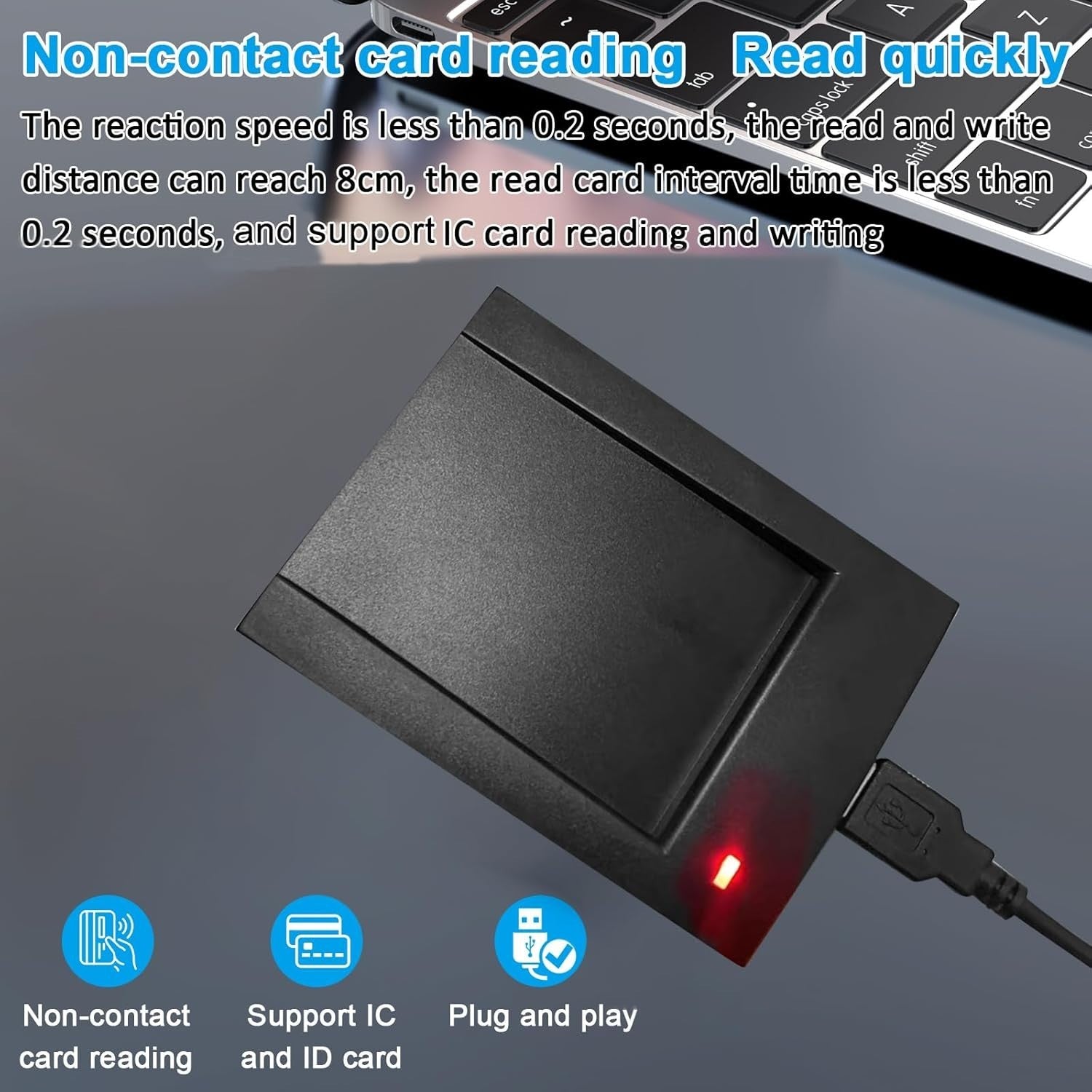

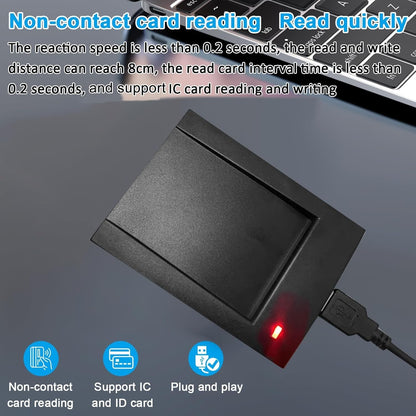

• RFID Card reader is a high performance 125Khz/13.56Mhz RFID smart card reader without driver, reader distance up to 100mm, it’s not only simple aspect, but also stable and reliable data. It can be plugged and inserted at will (plug and play) without external power supply, users do not need to load any drivers, the serial number in the RFID card can be read and output to the computer through the data interface, which is equivalent to automatic keyboard input.
• The card number can be read in any edit box (for example: Notepad, WORD and other text editing software).
• Widely used for RFID Radio Frequency Identification system and project, Such as Automated parking management system, Personal identification, Access controller, Production Access control, etc.

Technical Parameters

Model	R10DC (ID+IC Reader)
Frequency	125Khz/13.56Mhz
Support cards	Em4100,TK4100,SMC4001 and compatible card/MF(S50/S70/Ntag203 etc.ect. 14443A protocols cards)
Output format	10 digit dec(Defoult output format) (Allow user to customize the output format)
Size	110mm×80mm×26mm
Operating Distance	0-100mm
Read time	<200ms
Read interval	＜0.5 S
Cable length	1.5m
Operating System	Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android

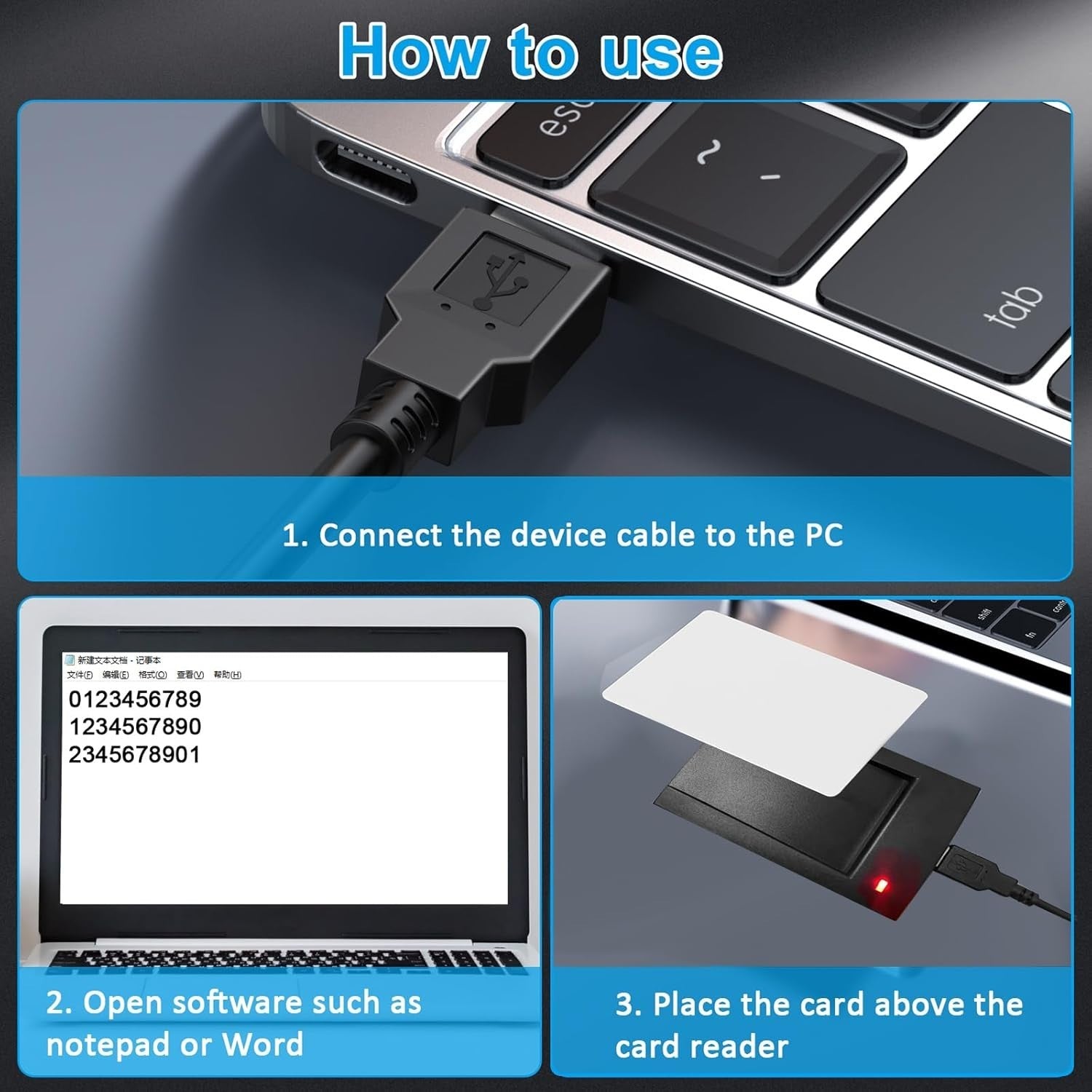

How to use/install

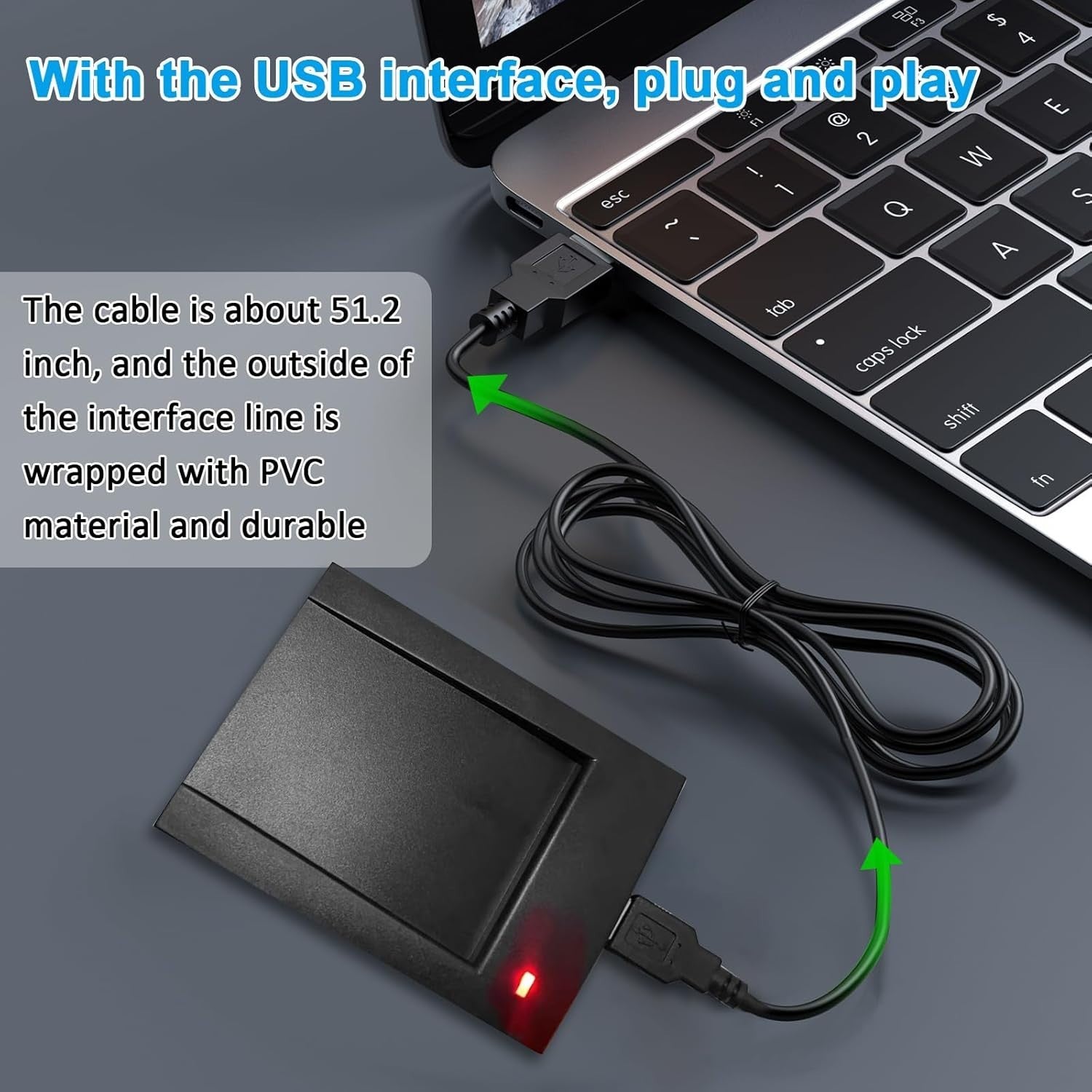

1.	Connect one end of the data cable to the corresponding interface of the computer, and the other end to the communication port of the card reader, and the card reader starts to enter self-test and initialization from a "beep";

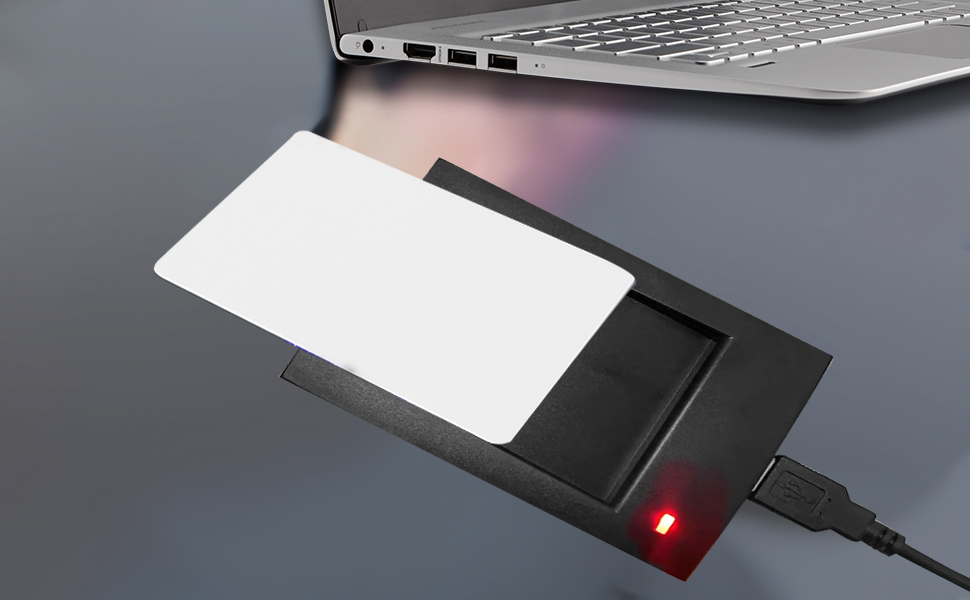

2.	When the indicator light of the card reader is "Blue", it indicates that the card reader is in the waiting state for card swiping. Test the method of reading the label by the card reader: Open the output software of the computer (such as editors such as Notepad\WORD\EXCEL), put the card close to the card reader, and the label card number will be displayed at the cursor of the output software.
3.	How to detect the card reader connected to the computer
-	When the card reader enters the card swiping state, open the "Device Manager" of the computer, and check whether there is an ergonomic input device in the options menu. If it appears, it means that the device has been successfully connected to the computer.
